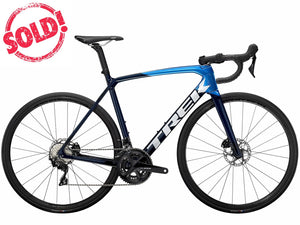

TREK - 2022 Émonda SL 5 Disc

Regular price: $4,399.00
Sale price: $4,399.00

Size

Detail

Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats and speedy descents.

It's right for you if...

You want the performance of a light, fast carbon bike at a great value. You're a new racer or dedicated road rider looking to upgrade from an aluminium bike, and you want dependable parts, confident stopping power and the weight savings and ride quality of an aerodynamic OCLV Carbon frame.

The tech you get

A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a full Shimano 105 11-speed drive train, powerful flat-mount Shimano hydraulic disc brakes, internal cable routing for clean looks and Bontrager Tubeless Ready wheels.

The final word

This light and aerodynamic bike is flat-out fast up climbs and on straightaways. It delivers all the stopping power and control you'll need for big descents. The hydraulic disc brake upgrade and reliable drivetrain make it a great choice for your first carbon road bike.

Why you'll love it

You get a lot for your money: Émonda SL 5 Disc is light, fast, fun to ride and ready to race
Aerodynamic tube shaping makes this our fastest Émonda SL platform ever – on flats and climbs alike
It makes the perfect high-value upgrade from an aluminium road bike
Hydraulic disc brakes give you stopping power and control in any weather, on any road
Like every Émonda, it's built to be the lightest and fastest in its class and backed by our lifetime warranty

SPECIFICATIONS

FRAMESET
Frame	Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Frame fit	H1.5 Race
WHEELS
Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
*Rim	Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
*Rim	Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes	14 g stainless steel
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 c
Max tyre size	30c
DRIVETRAIN
*Shifter	Size: 47, 50, 52 Shimano 105 R7025, short-reach lever, 11-speed
*Shifter	Size: 54, 56, 58, 60, 62 Shimano 105 R7020, 11-speed
Front derailleur	Shimano 105 R7000, braze-on
Rear derailleur	Shimano 105 R7000, short cage, 30T max cog
*Crank	Size: 47 Shimano 105 R7000, 50/34 (compact), 165 mm length
	Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length
	Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5 mm length
	Size: 60, 62 Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 R7000, 11-30, 11-speed
Chain	Shimano 105 HG601, 11-speed
Max. chainring size	1x: 50T, 2x: 53/39T
COMPONENTS
*Saddle	Size: 47, 50, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 60, 62 Bontrager P3 Verse Comp, steel rails, 145 mm width
*Seatpost	Size: 47, 50, 52, 54 Bontrager alloy seat mast cap, 10 mm offset, short length
*Seatpost	Size: 56, 58, 60, 62 Bontrager alloy seat mast cap, 10 mm offset, tall length
*Handlebar	Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width
	Size: 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
	Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
	Size: 60, 62 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 58, 60, 62 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Brake	Shimano 105 hydraulic disc
Brake rotor	Shimano SM-RT70, CenterLock, 160 mm
WEIGHT
Weight	56 - 9.15 kg / 20.18 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
