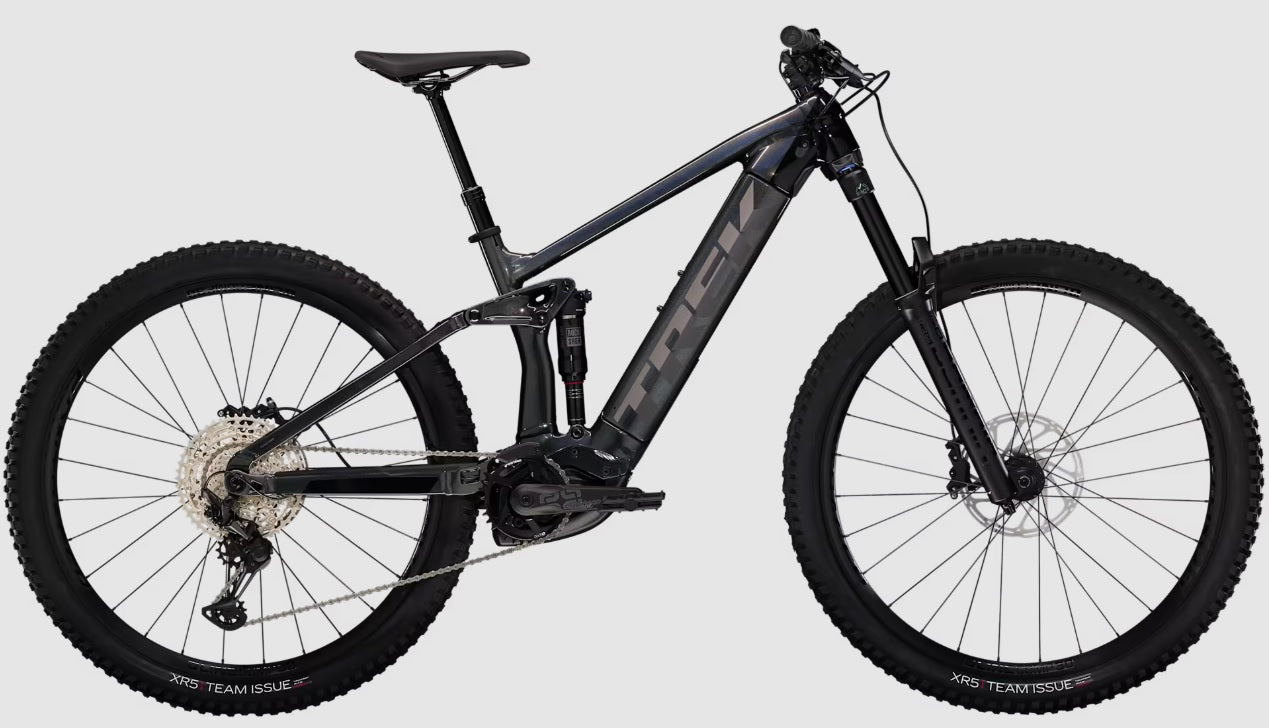

TREK - 2024 Rail 7 Gen 3

Regular price: $9,999.00
Sale price: $7,499.00

Size

Detail

Rail 7 is a long-travel electric mountain bike built for ripping the big stuff

It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful Bosch drive system that's basically like having your own shuttle.

It's right for you if...

You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how amazing e-MTBs are on the mountain, and want to invest in better components.

The tech you get

A burly alloy frame with 150 mm of rear travel and a 625 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 32 km/h, including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful SRAM 2-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

Why you'll love it

The Alloy Rail Gen 3 features Bosch’s smart system with an LED remote that connects to the Bosch eBike Flow app for over-the-air system updates, customised motor tuning and more
Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
The Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)

The final word

The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. Its long-range battery gives you all the power you want for packing in laps and miles of smiles.

Frame	Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork	RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock	RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Front Wheel	Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Rear Wheel	Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29"
Rear Skewer	Bontrager Switch thru-axle, removable lever
Tire	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Max tyre size	Frame: 29x2.60", Fork: See manufacturer
Battery	Bosch PowerTube 625 Wh, smart system
Charger	Bosch standard 4A, 230V, smart system
Computer	Bosch LED remote, smart system
Motor	Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Shifter	Shimano SLX M7100, 12-speed
Rear Derailleur	Shimano XT M8100, long cage
Crank	Ethirteen Espec Plus, 165 mm length
Crank Arm	Ethirteen Espec Plus, 160 mm length
Chain Ring	Ethirteen Espec, 34T alloy, 55 mm chainline
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 34T
Saddle	Bontrager Arvada, steel rails, 138 mm width
Seatpost	Bontrager Line Dropper, MaxFlow, internal routing, 31.6 mm
Handlebar	Bontrager Rhythm Comp, alloy, 31.8 mm
Grips	Bontrager XR Trail Comp, nylon lock-on
Stem	Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Brake	Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake Rotor	Shimano RT76, 6-bolt, 203 mm
Rotor size	Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
Weight	M - 24.13 kg / 53.2 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
