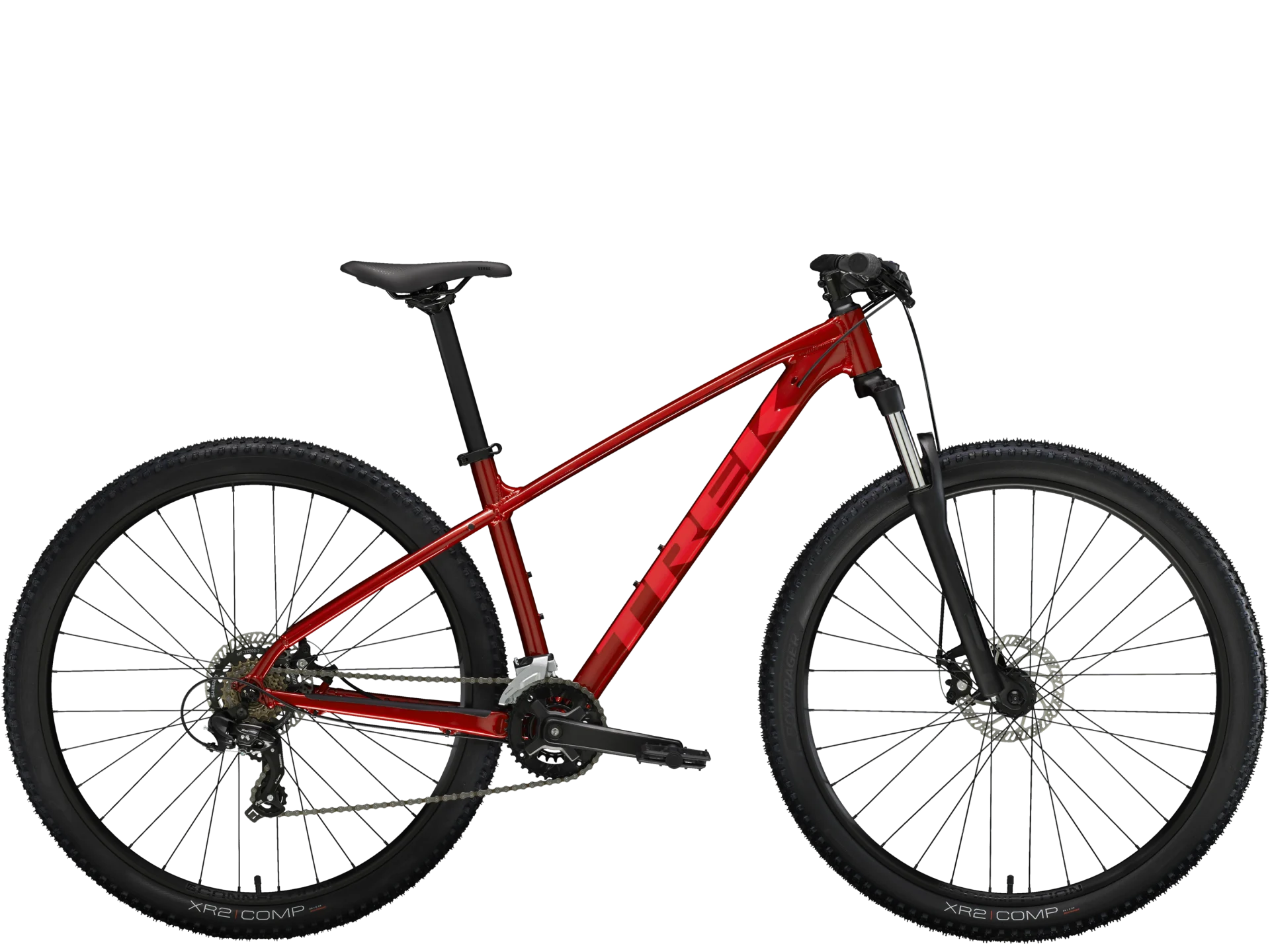

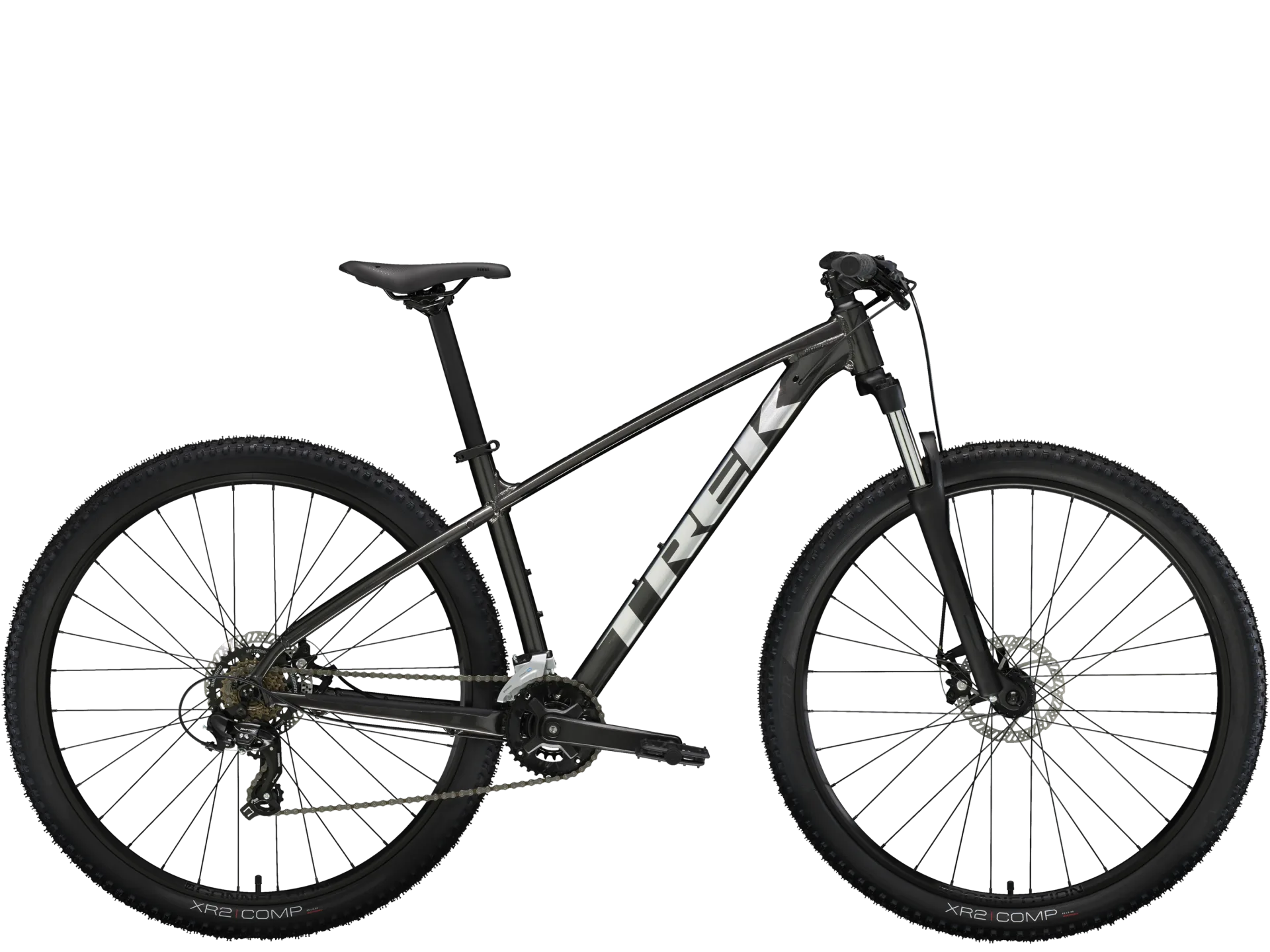

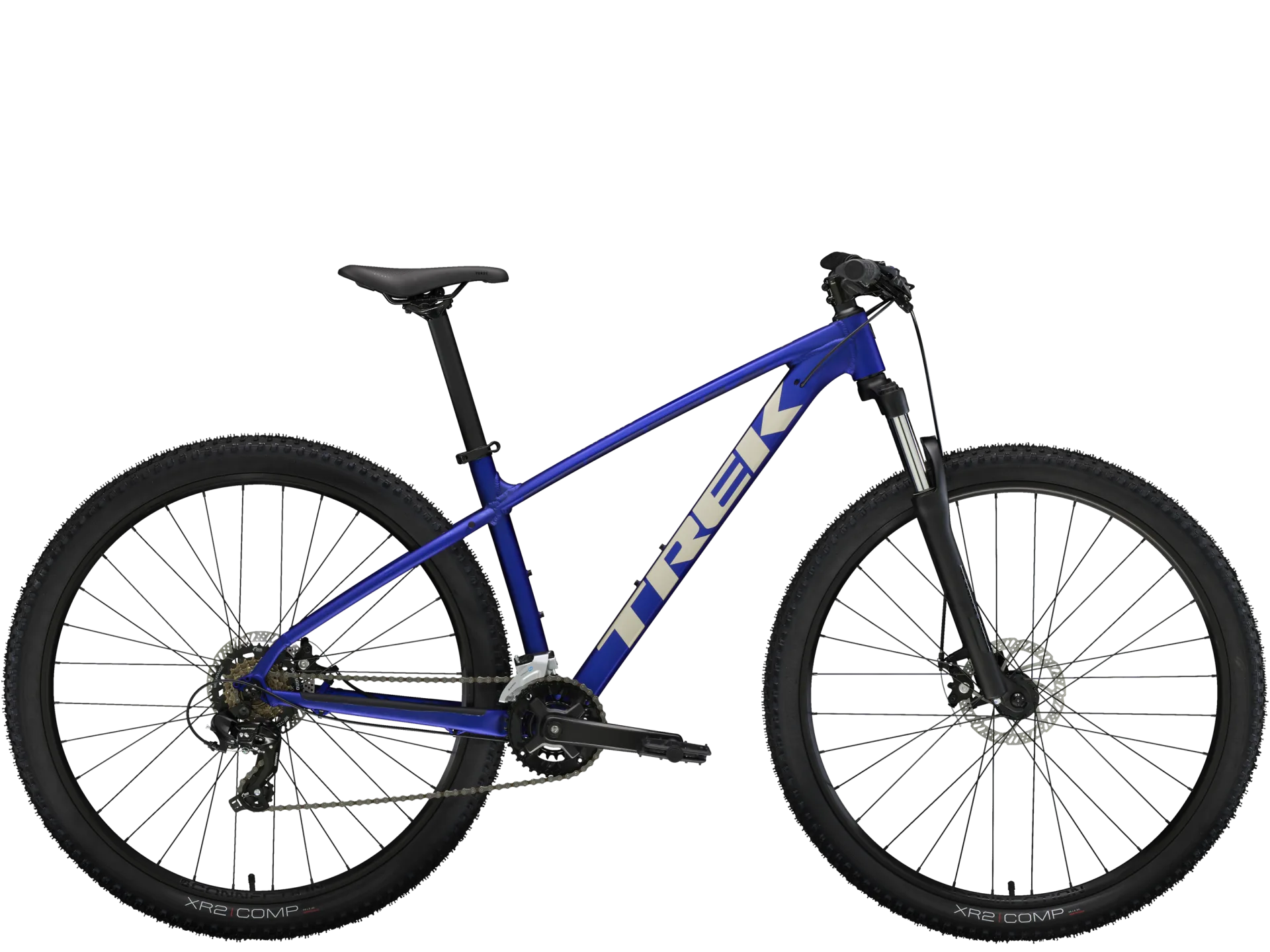

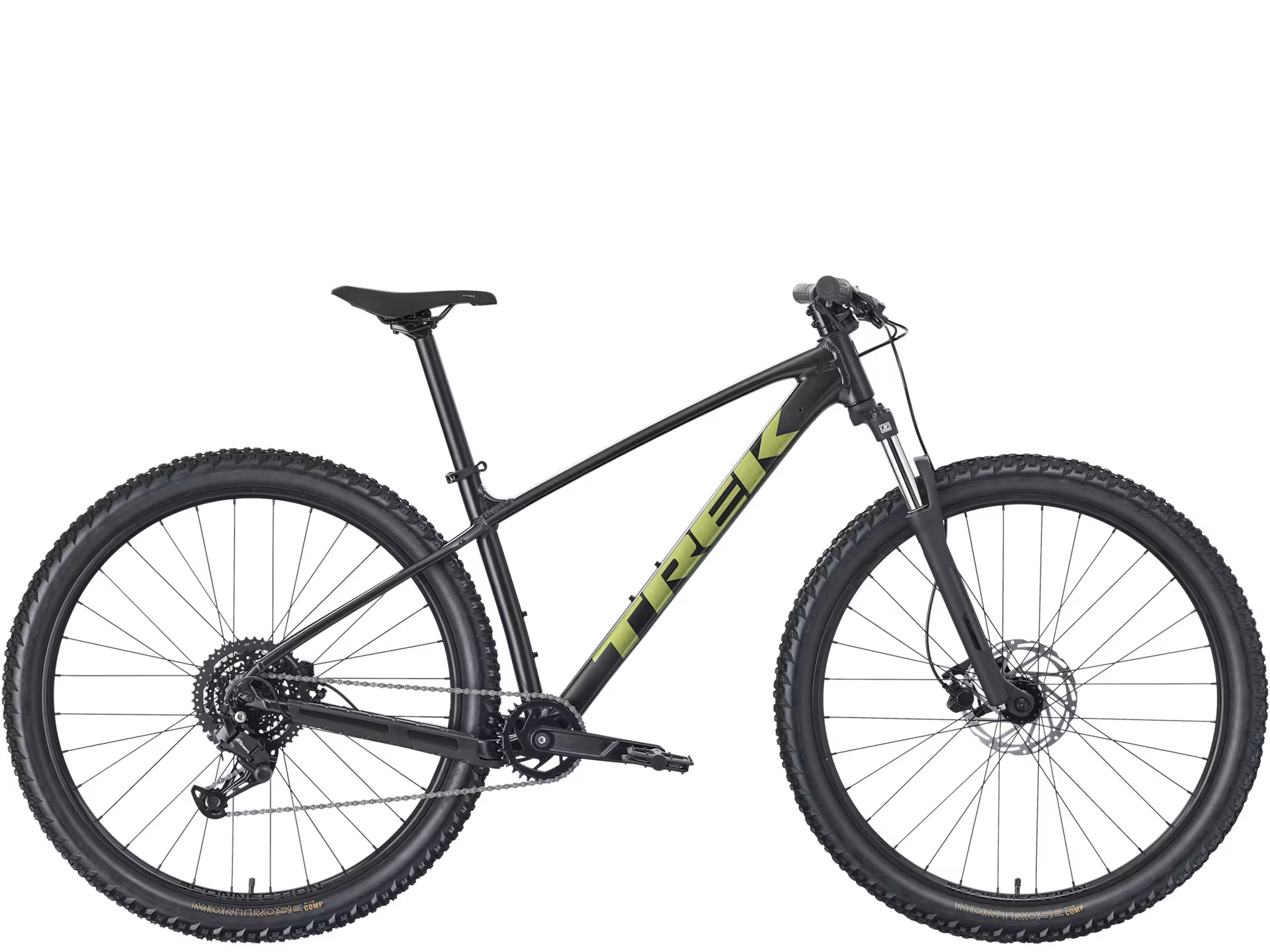

The Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.
Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
Fork | SR Suntour XCE 28, coil spring, preload, 42 mm offset, 100 mm QR, 100 mm travel |
Max compatible fork travel | 100mm (XS and S: 490mm axle-to-crown, M and up: 509mm axle-to-crown) |
Skewer rear | 152x5 mm QR |
Max tyre size | Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer |
Shifters | Shimano Altus EF500 |
Front derailleur | Shimano Altus M315, 34.9 mm clamp, top swing, dual pull |
Rear derailleur | Shimano Tourney TY300 |
Crank | ProWheel TM-CY10, 36/22 |
Bottom bracket | VP BC73, 73 mm, threaded cartridge |
Cassette | Shimano TZ500, 14-34, 7-speed |
Chain | KMC Z7, 7-speed |
Pedal | VP-536 nylon platform |
Max. chainring size | 1x/2x: 34T, 3x: 42T |
Saddle | Bontrager Verse Short, stainless steel rails |
Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset |
Handlebar | Bontrager alloy, 31.8 mm |
Grips | Bontrager XR Endurance Comp, lock-on |
Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree |
Head set | Semi-integrated, 1-1/8" |
Brake | Tektro mechanical disc |
Brake rotor | Tektro, 6-bolt, 160mm |
Weight | M - 14.60 kg / 32.19 lbs |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Bike purchases are pickup only.
However if you can’t get to us please call the shop if you would like the bike shipped, a freight charge will apply.
