TREK - Rail+ 8
TREK - Rail+ 8

TREK - Rail+ 8

$10,999.00
$10,999.00
Quantity must be 1 or more
Detail
Reviews
Detail

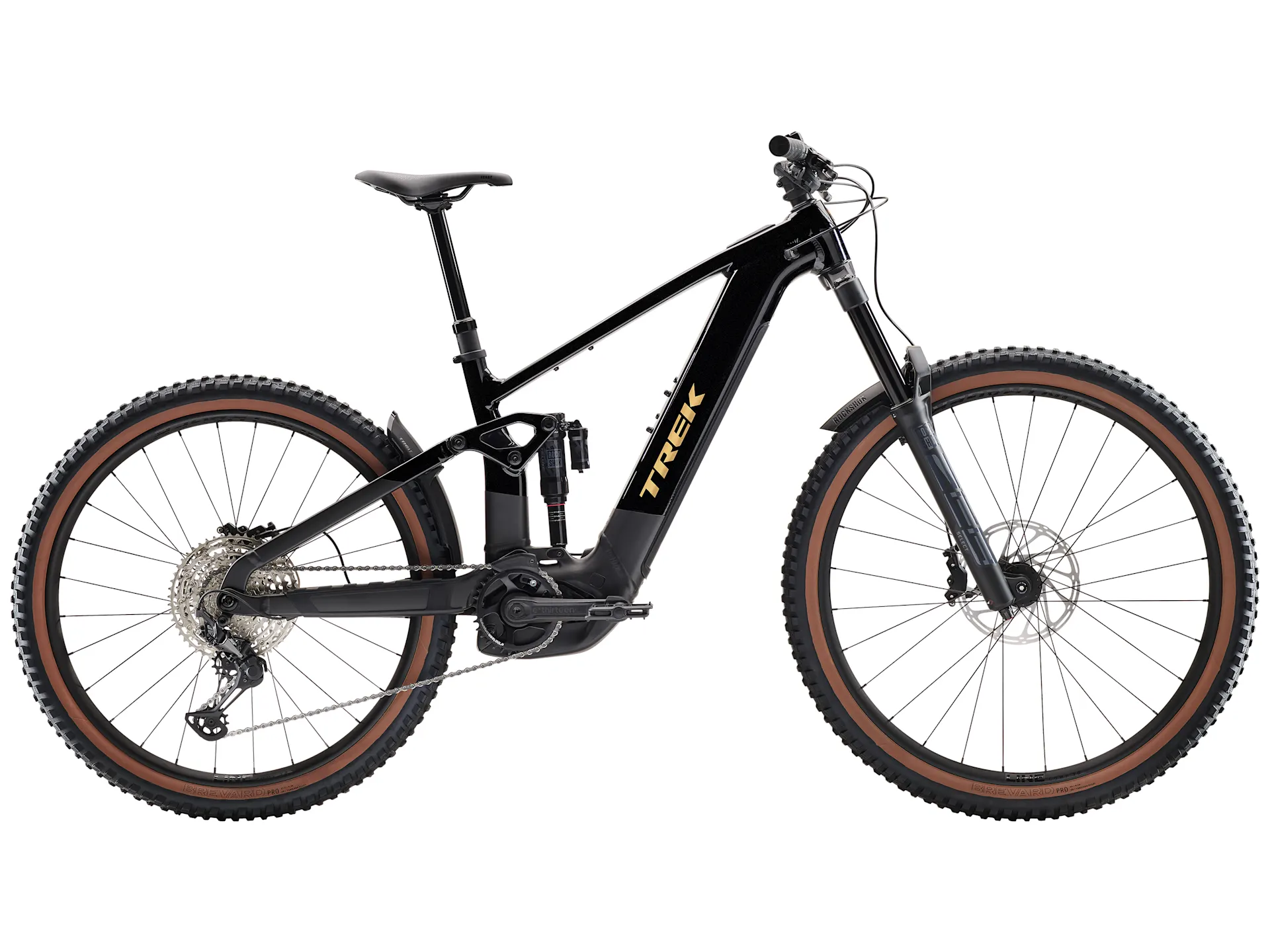

The Rail+ 8 is an alloy enduro e-bike that packs in what you want most for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160 mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customise it for how and where you ride.

Frame Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
Shock RockShox Super Deluxe Select+ RT, 205mm x 65mm
Max compatible fork travel 180mm
Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" Small Size, 29" Medium Upwards
Wheel rear Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5"
Skewer rear Bontrager Switch thru-axle, removable lever
Tyre Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi
Battery Bosch PowerTube 800 Wh, smart system
Charger Bosch standard 4A, 230V, smart system
Controller Bosch System Controller BRC3100, smart system
Motor Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Shifter Shimano SLX M7100, 12-speed
Rear derailleur Shimano XT M8100, long cage
Crank arm E*thirteen E*spec Plus, 160 mm length
Cassette Shimano Deore M6100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Pedal VP-536 nylon platform
Max. chainring size 1x: 36T
Saddle Bontrager Verse P3, steel rails
Seatpost Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm
Handlebar Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
Head set Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Brake SRAM DB 8 4-piston hydraulic disc
Brake rotor SRAM CentreLine, 6-bolt, round-edge, 200 mm
Rotor size Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
Mudguard Trek 27.5" custom fender
Weight M - 25.08 kg / 55.3 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
