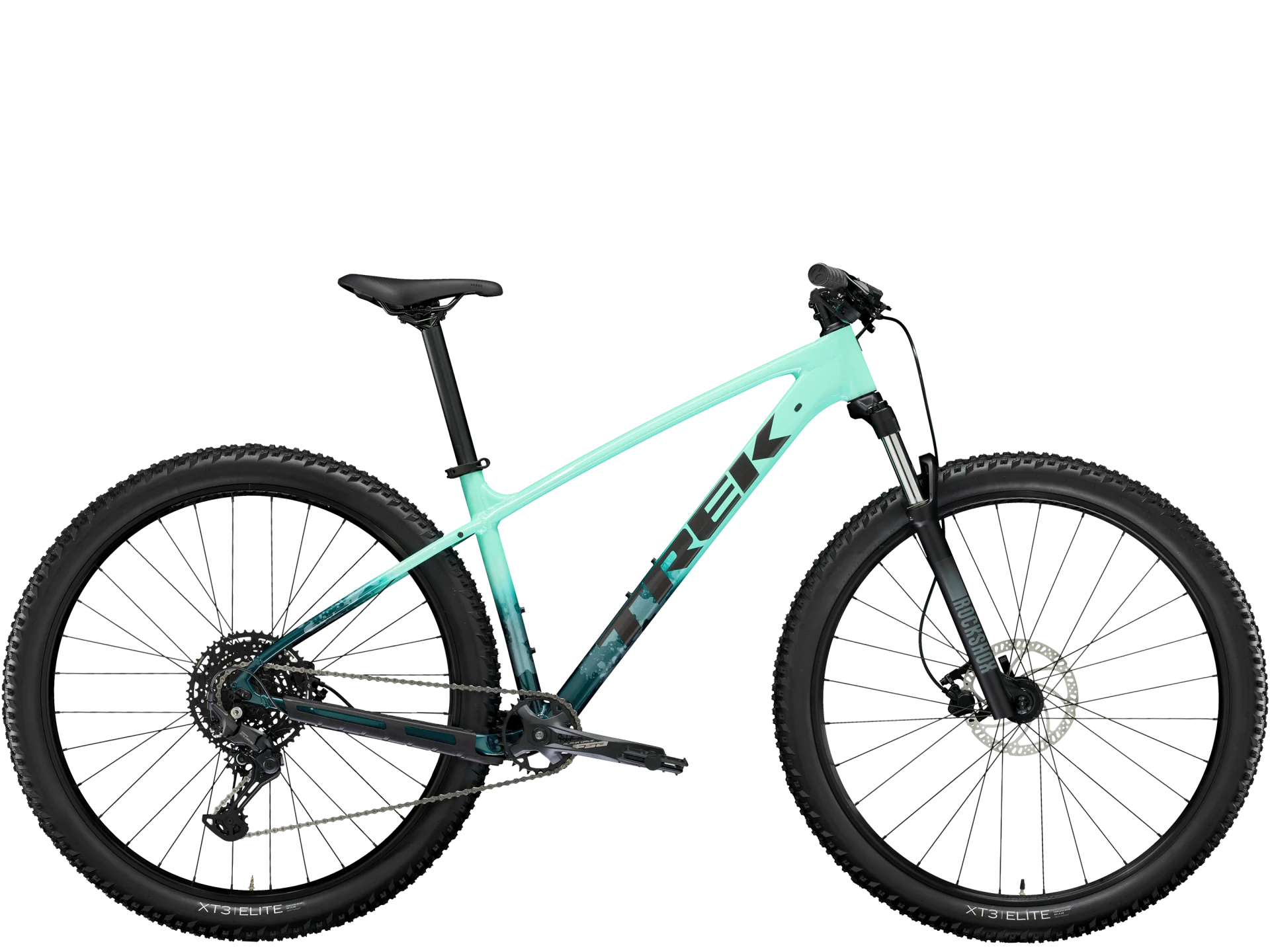

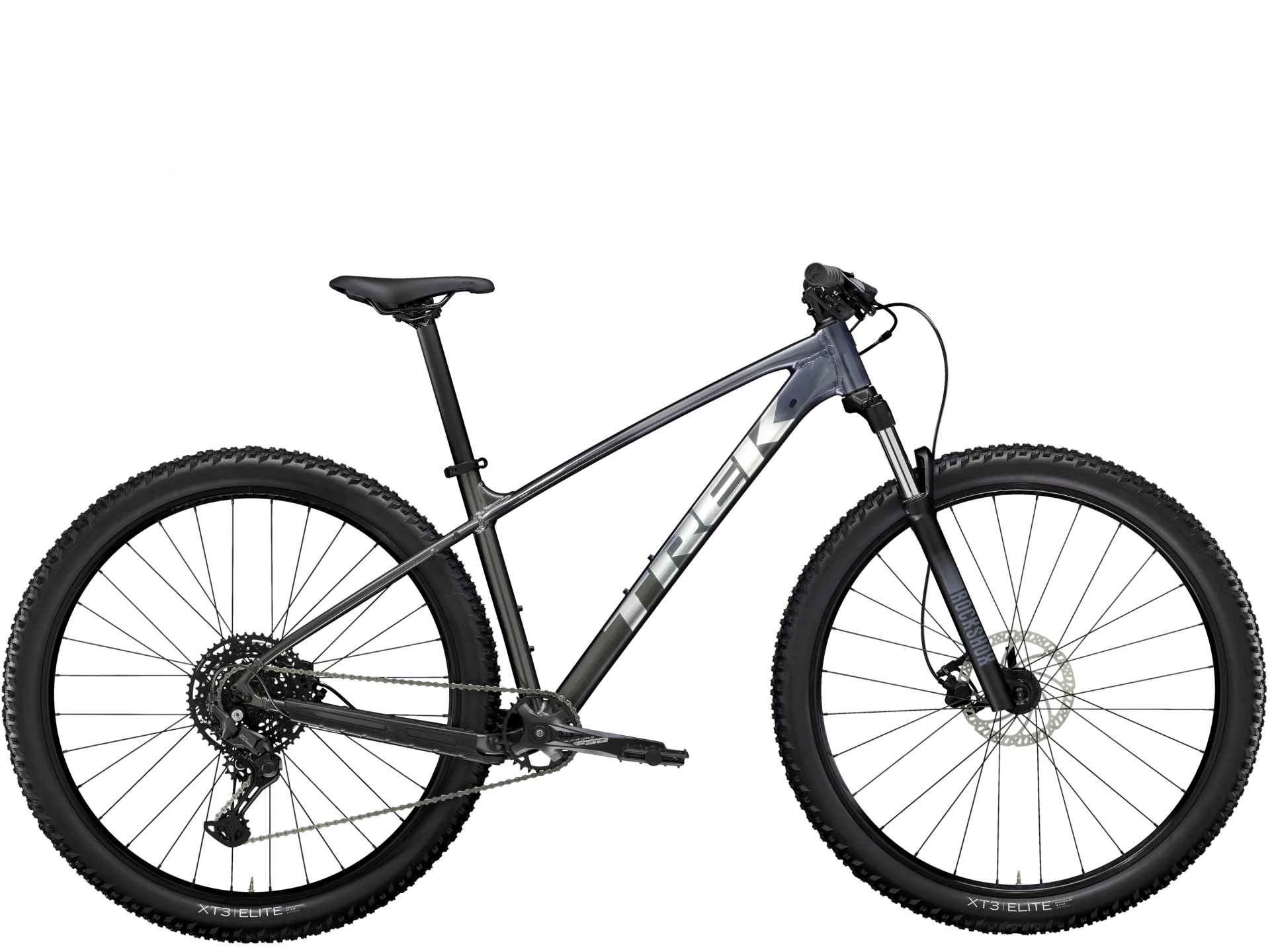

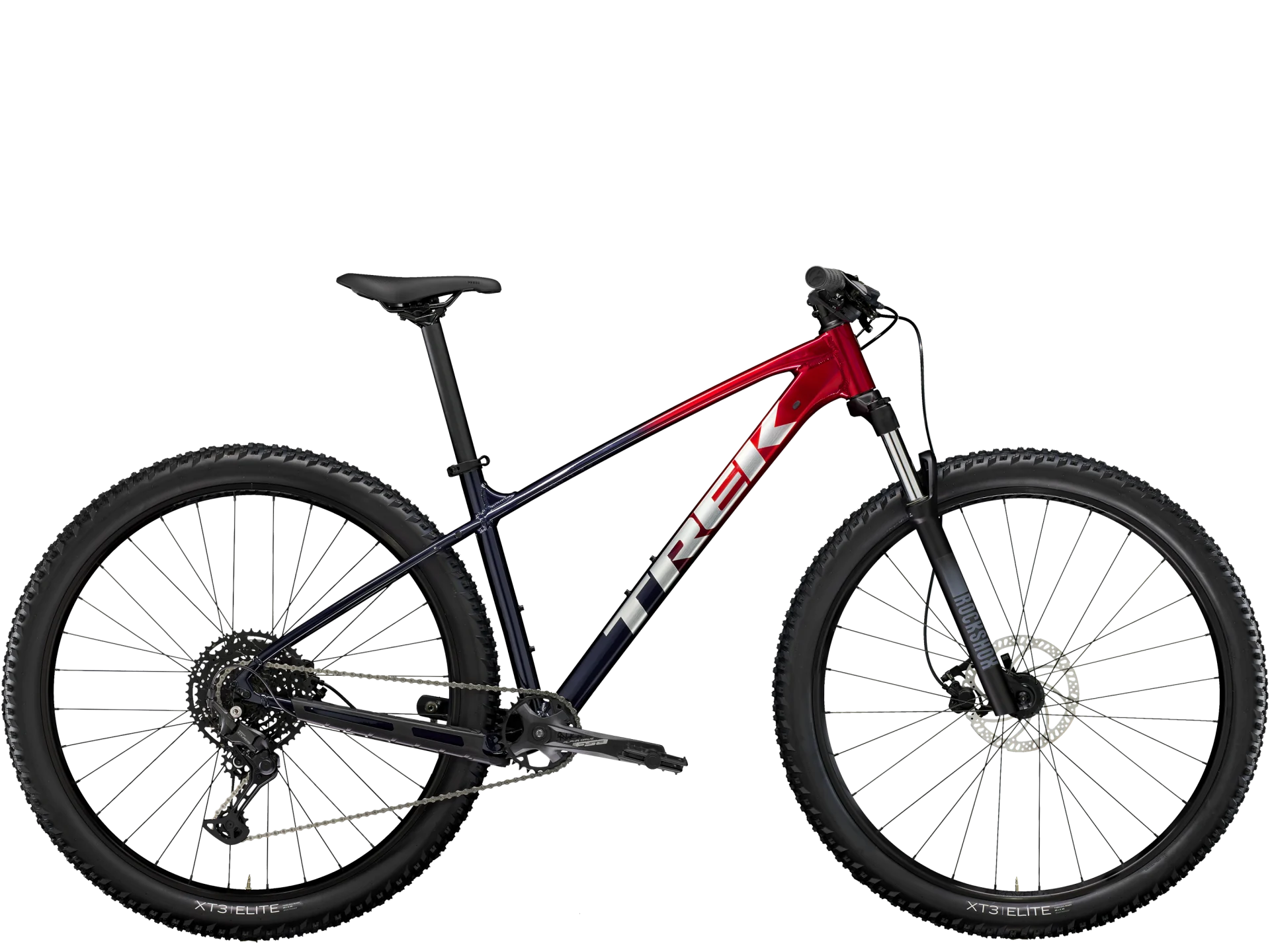

The Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated, slacker frame geometry makes descents easier to control, while a suspension fork helps smooth out bumpy terrain. Integrated rack and kickstand mounts make it easy to set up for weekday commuting or everyday errands.
| Frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| Fork | RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm |
| Skewer front | 116x5mm QR |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Montrose comp, wire bead, 30 tpi, 27.5 or 29x2.40" |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer |
| Shifter | Shimano U6000, 10-speed |
| Rear derailleur | Shimano CUES U6000 GS |
| Crank | Shimano U4000, 30T chainring |
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: See FAQ, 2x: 36T, 3x: 42T |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | TranzX JD-YSI34 Dropper, internal routing, 31.6 mm, 456 mm length |
| Handlebar | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Trek Line Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree |
| Head set | Semi-integrated, 1-1/8" |
| Brake rotor | Shimano RT26, 6-bolt |
| Brake Set | Shimano MT200 hydraulic disc |
| Max rotor size | Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
| Weight | M - 15.00 kg / 33.07 lb |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Bike purchases are pickup only.
However if you can’t get to us please call the shop if you would like the bike shipped, a freight charge will apply.
