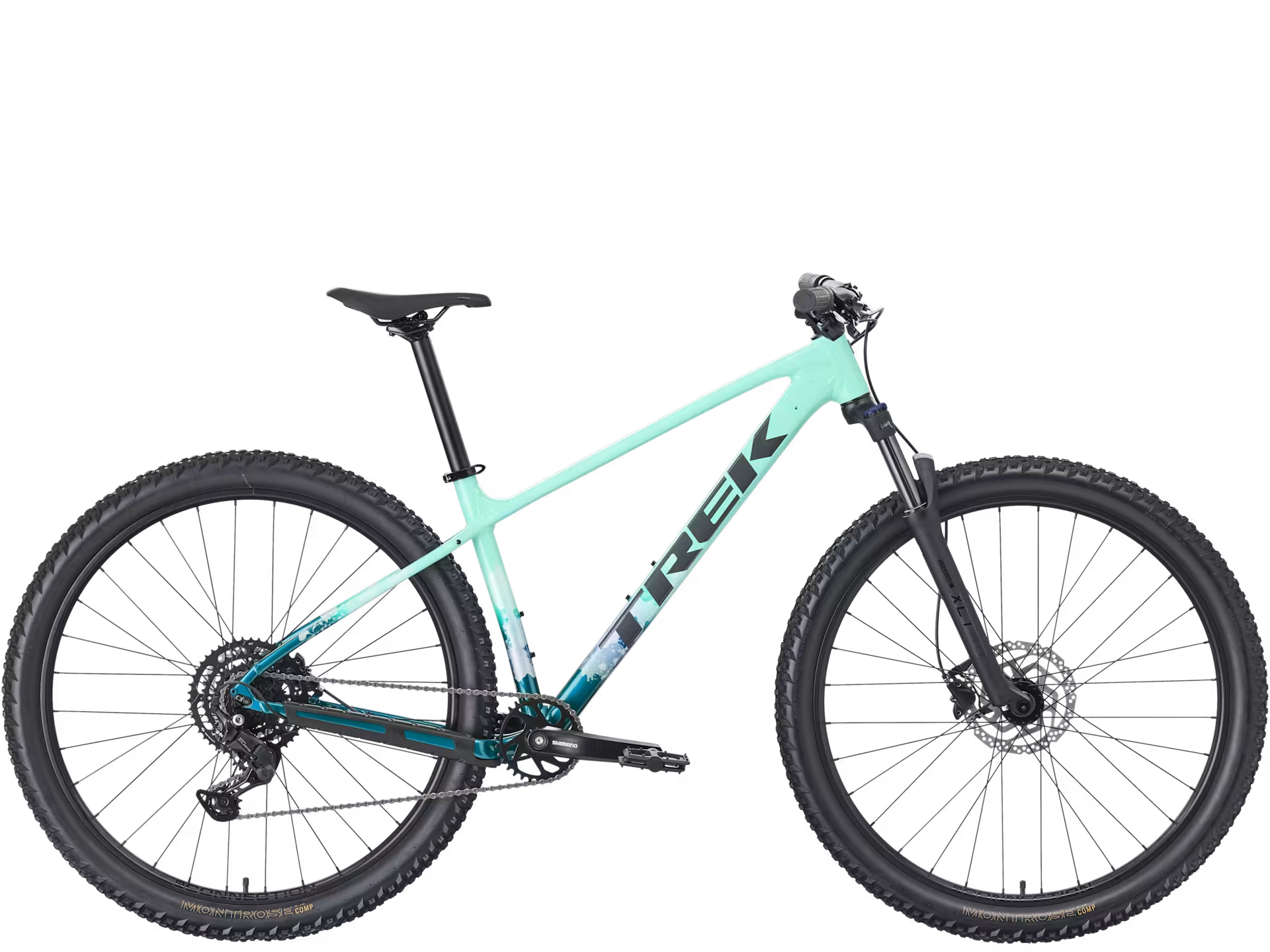

TREK - Marlin 5 Gen 3 (2026)

Regular price: $1,099.00
Sale price: $1,099.00

Colour

Mulsanne Blue Fury Red Miami Green/Dark Aquatic Fade

Size

Detail

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Frame	Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork	SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 100 mm travel
Hub front	Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front	Trek Thru-Skew
Hub rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear	173x5 mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes	14 g stainless steel, black
Tyres	Bontrager Montrose Comp, wire bead, 30 tpi
Shifter	Shimano U4000, 9-speed
Rear derailleur	Shimano CUES U4000
Crank	Shimano CUES U4001, 32T, 52mm chain line
Bottom bracket	Shimano, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette	Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain	Shimano LG500
Pedal	VP-536 nylon platform
Saddle	Bontrager Verse Short, stainless steel rails
Seatpost	Bontrager alloy, 31.6 mm, 12 mm offset
Handlebar	Bontrager alloy, 31.8 mm
Grips	Trek Line Comp, nylon lock-on
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8"
Brake rotor	Shimano RT26, 6-boltm
Brake Set	Shimano MT200 hydraulic disc
Weight	M - 15.10 kg / 33.29 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
