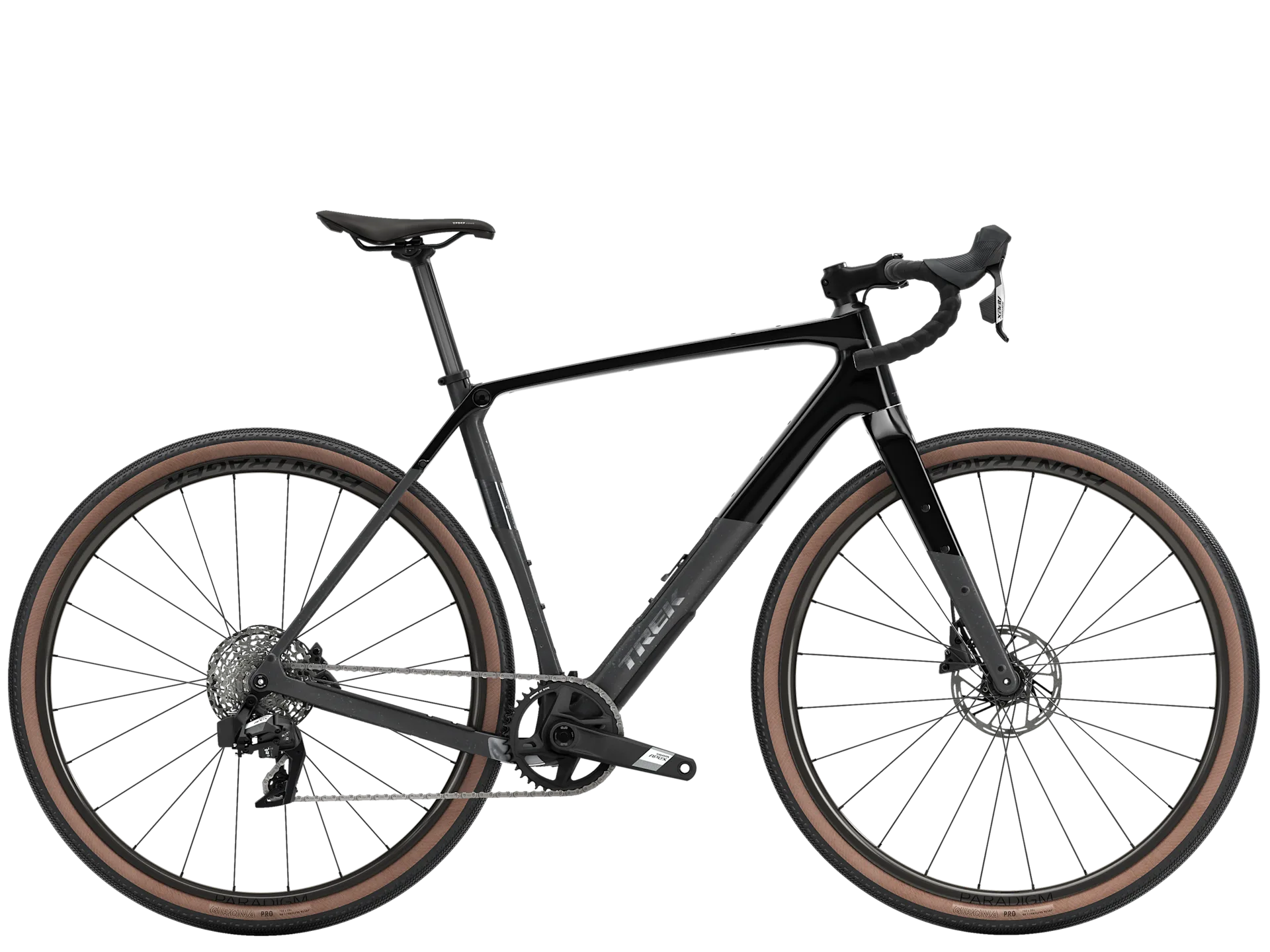

TREK - Checkpoint SL5 AXS

Regular price: $5,999.00
Sale price: $5,999.00

Size

Detail

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It comes equipped with a wireless SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.

Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle
Fork	Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Max compatible fork travel	40 mm (XS: compatible with rigid fork only)
Weight	ML – 9.50 kg/20.95 lb (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system	Battery
Shifter	SRAM Apex AXS, 12-speed
Rear derailleur	SRAM Apex XPLR eTap AXS, 44T max cog
Crank	SRAM Apex 1, 40T, DUB Wide
Bottom bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM XPLR PG-1231, 11-44, 12-speed
Chain	SRAM Apex, 12-speed
Max. chainring size	1x:44 2x: 46/30
Wheel front	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
Wheel rear	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Skewer rear	Bontrager Switch chamfered thru axle, removable lever
Tyre	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle	Verse Short Comp, steel rails
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Handlebar	Bontrager Elite Gravel, alloy, 40 cm width
Handlebar tape	Bontrager Supertack Perf tape
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Brake rotor	SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 180 mm front and rear
Accessories	Bag
