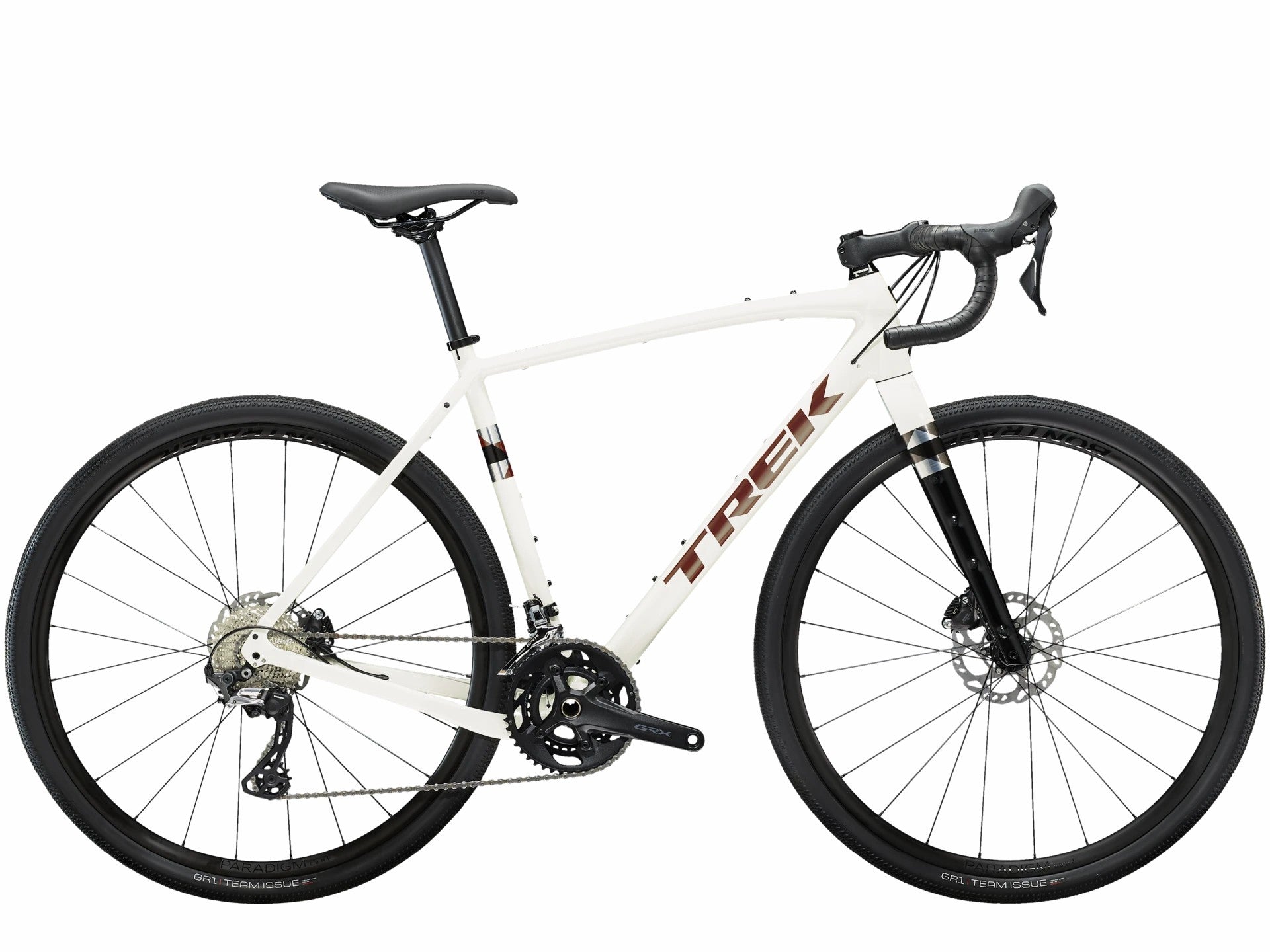

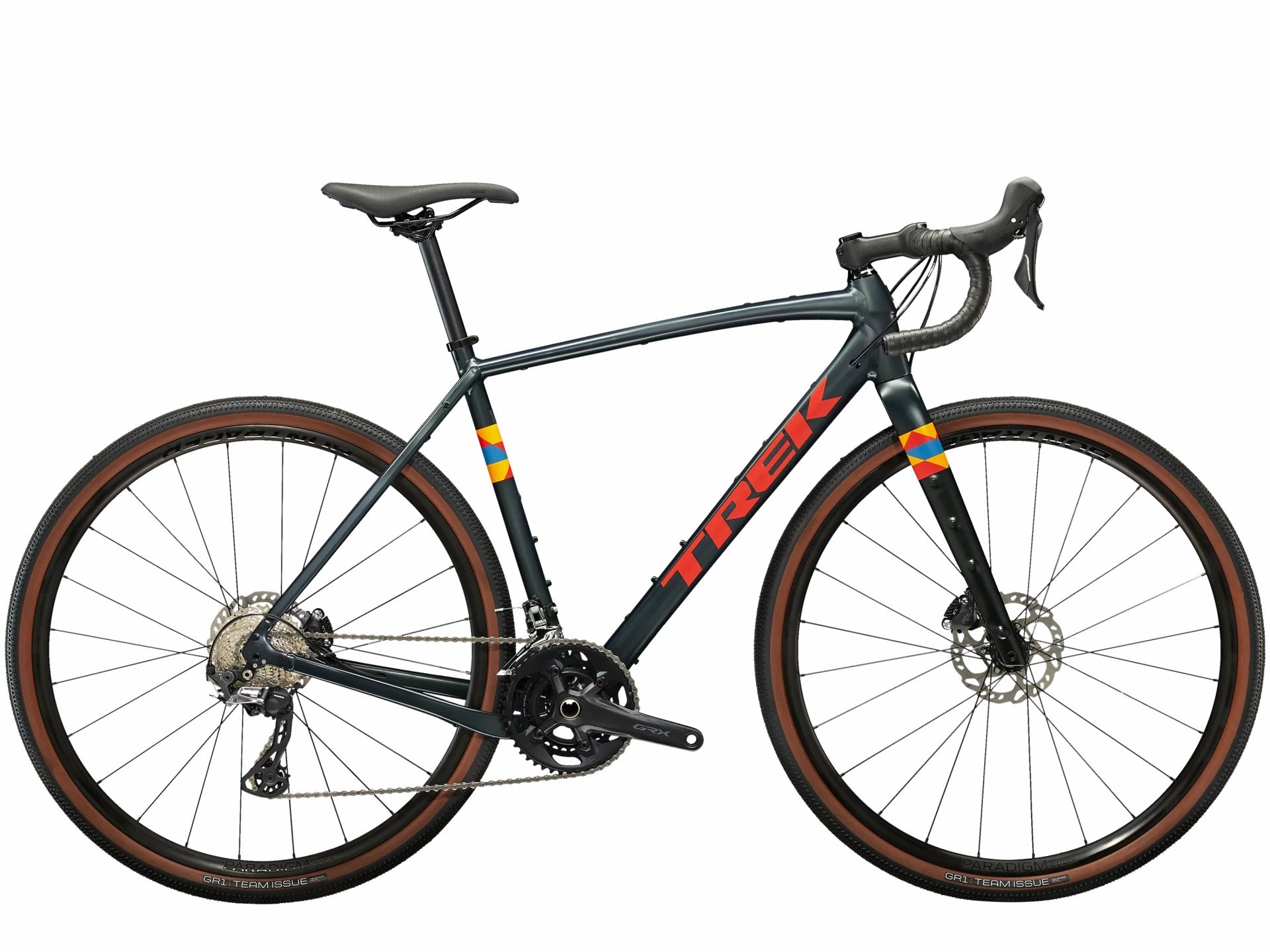

TREK - Checkpoint ALR 5 (2023)

Regular price: $3,800.00
Sale price: $3,800.00

Color

Size

Detail

Checkpoint ALR 5 is the best value gravel bike in the line-up. It's a high-quality build that will hold up for long, rugged miles on roads, dirt and even the most treacherous gravel. A wealth of features like nimble-yet-stable progressive geometry, loads of mounts, plus a GRX drivetrain make it easy to customise for your kind of adventure.

Frame	300 Series Alpha Aluminium, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, 142x12 mm thru-axle
Frame with Fork	300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle
Fork	Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Frame fit	Gravel
Shifter	Shimano GRX hydraulic disc
Front derailleur	Shimano GRX RX810, braze-on
Rear derailleur	Shimano GRX RX810, long cage, 34T max cog
Crank	Shimano GRX RX600, 46/30
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 HG700-11, 11-34, 11-speed
Chain	Shimano HG601, 11-speed
Max. chainring size	1x: 44T (SRAM), 50T (Shimano), 2x: 50/34
Saddle	Bontrager Verse Comp, steel rails
Seatpost	Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Handlebar	Bontrager Elite Gravel
Handlebar tape	Bontrager Supertack Perf tape
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Brake	Shimano RX400 hydraulic disc
Brake rotor	Shimano RT70, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 160mm front & rear
Weight	56 - 9.75 kg / 21.5 lb
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
