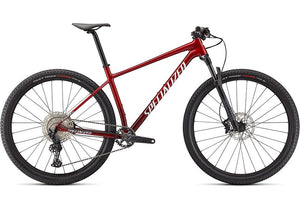

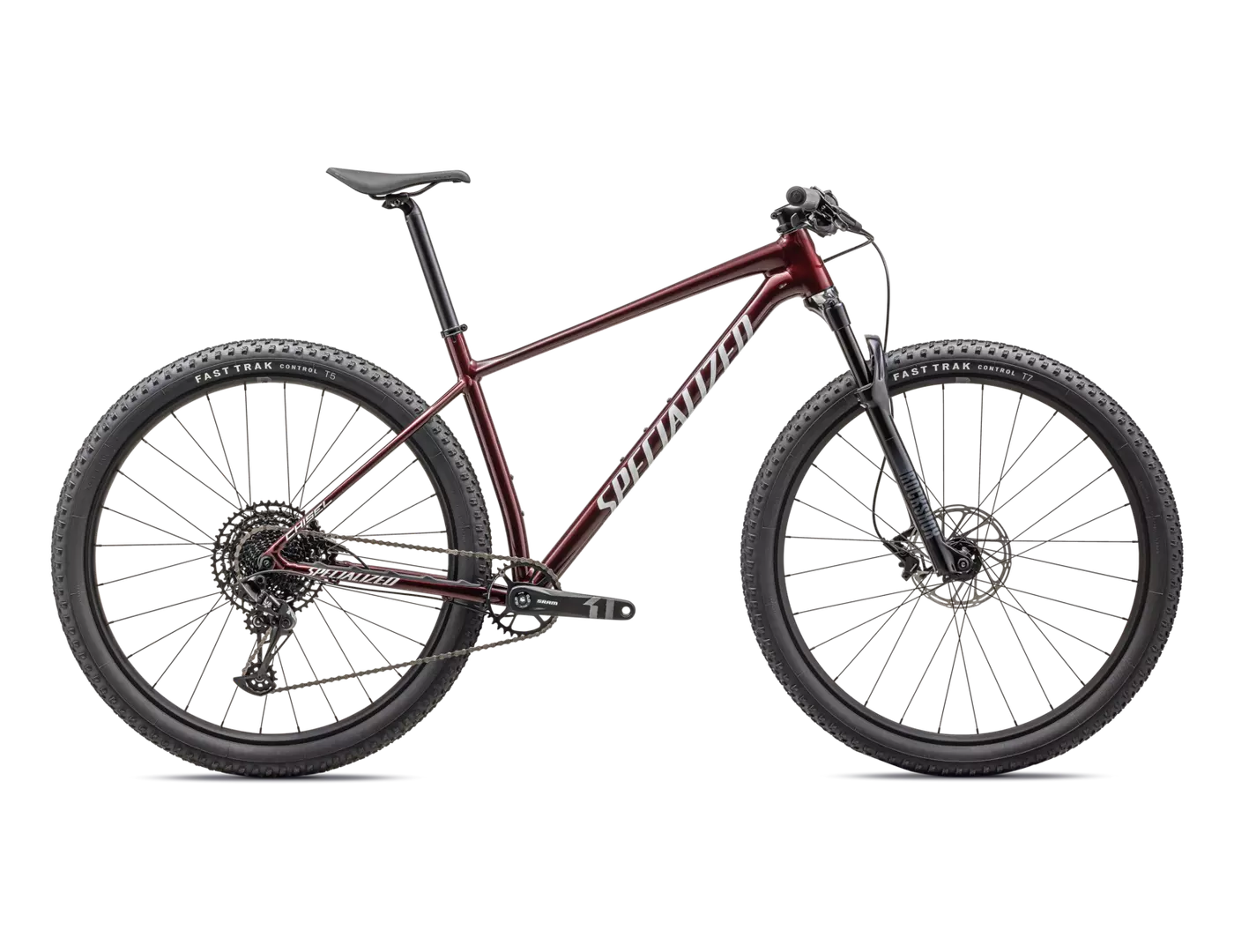

SPECIALIZED - 2022 Chisel Comp
SPECIALIZED - 2022 Chisel Comp

SPECIALIZED - 2022 Chisel Comp

Regular price
$3,000.00
Sale price
$3,000.00
Quantity must be 1 or more

FEATURES

The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive "top step" at a price that leaves some jingle jangle left over for race entries.

This Chisel comes dressed with Shimano's crisp-shifting SLX 1x12 drivetrain and powerful M6100 hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.

  • The Chisel's all-new frame utilizes our D'Aluisio Smartweld technology that moves the hydroformed tube joints away from the areas of the highest stress, making the finished frame's balance of strength, rigidity, and weight more pronounced than any alloy frame in history. This not only makes the Chisel one of the lightest alloy hardtail frames coming in as light as 1,400g, but it also allows for tuned frame stiffness across all sizes.
  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.



BIKE SPECS

FRAME Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
FORK RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)
TAPE Specialized Trail Grips
STEM Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS Stout XC, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
SEATPOST Specialized Alloy, Single Bolt, 30.9mm
FRONT BRAKE Shimano M6100, 2-piston caliper, hydraulic disc
REAR BRAKE Shimano M6100, 2-piston caliper, hydraulic disc
SHIFT LEVERS Shimano SLX, M7100, 12spd
REAR DERAILLEUR Shimano SLX M7100, SGS, 12-speed
CASSETTE Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
CHAIN Shimano Deore M6100, 12spd w/quick link
CRANKSET Shimano MT511, 32T chainring
CHAINRINGS 32T
BOTTOM BRACKET Shimano, BB52, Threaded
RIMS Alloy, Offset Design, Tubeless Ready, 25mm internal width, 28h
FRONT HUB Shimano MT410-B, Centerlock 28h, 15x110 Boost
REAR HUB Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline
FRONT TYRE Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
SPOKES Stainless, 14g
REAR TYRE Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
INNER TUBES Presta, 60mm valve
SADDLE Body Geometry Power Sport, steel rails
SEAT BINDER Specialized Alloy, 34.9mm



GEOMETRY

XS S M L XL
BB Drop 68 63 63 63 63
BB Height 304 309 309 309 309
Bike Standover Height 732 762 792 816 847
Chainstay Length 432 432 432 432 432
Crank Length 170mm 170mm 175mm 175mm 175mm
Fork Length, Full 486 506 506 506 506
Fork Rake/Offset 44 44 44 44 44
Front Center 647 674 699 730 760
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Head Tube Angle 68 68 68 68 68
Head Tube Length 95 95 95 110 125
Reach 385 405 430 455 480
Saddle Width 155mm 155mm 143mm 143mm 143mm
Seat Tube Angle 74 74 74 74 74
Seat Tube Length 367 400 430 470 520
Seatpost Length 350mm 400mm 400mm 400mm 400mm
Stack 591 605 605 619 633
Stem Length 60mm 60mm 70mm 70mm 70mm
Top Tube Length, Horizontal 555 578 603 632 661
Trail 103 103 103 103 103
Wheelbase 1070 1099 1124 1154 1185
