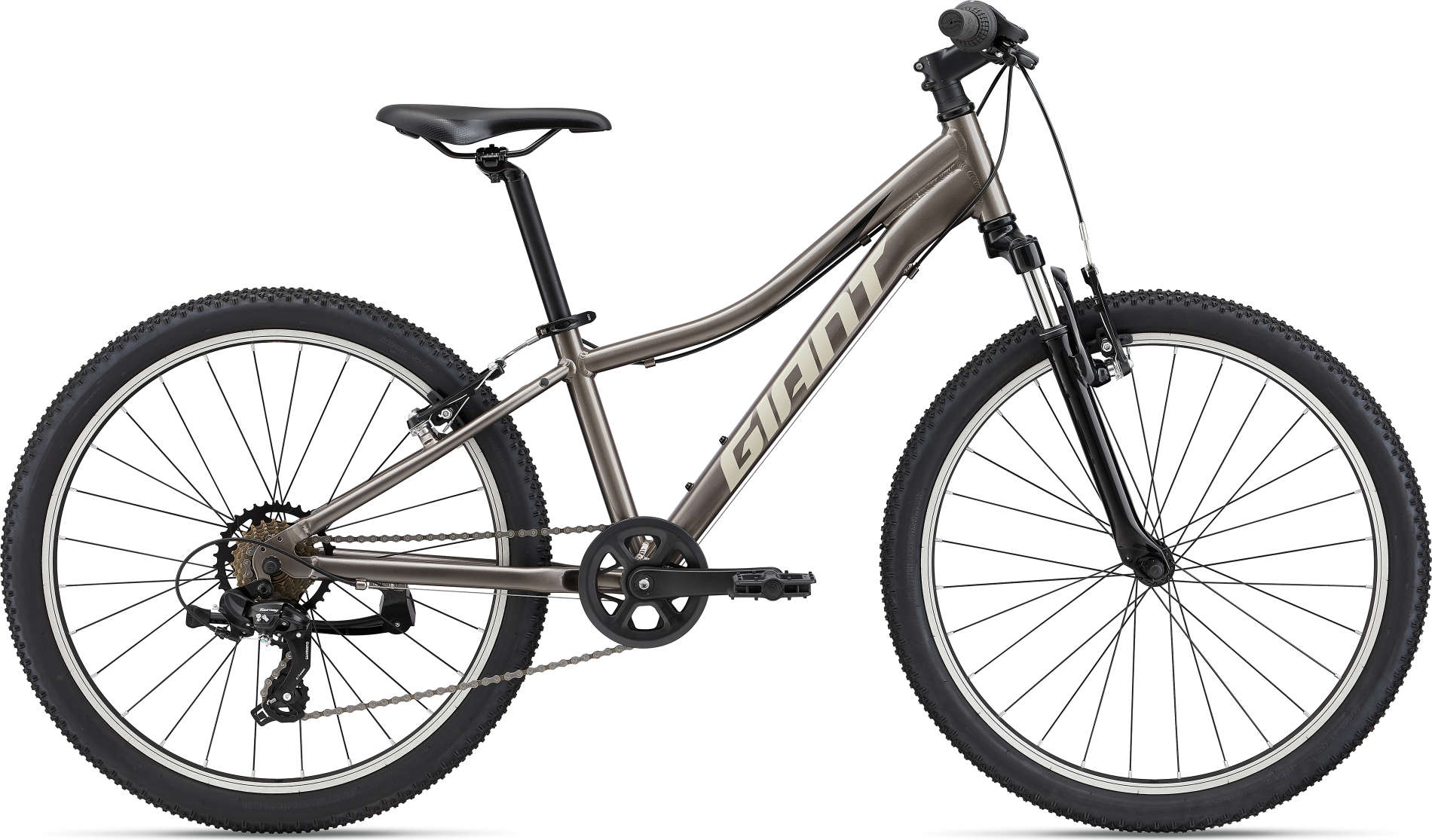

Here’s a ticket to hit the trail. The XTC JR 24 is the perfect way to introduce young riders to off-road riding.
ALUXX-grade aluminium frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.
Size-specific wheels and front suspension give young riders the performance they need for true off-road riding.
Youth-specific performance components help young riders improve their off-road skills.
Sizes | One size |
---|---|
Colors | Metal |
Frame | ALUXX-Grade aluminium |
Fork | HL steel, 50mm |
Shock | N/A |
Handlebar | Giant Sport, alloy, 31.8mm |
Grips | Giant Junior |
Stem | Forged alloy Ahead, 8-degree |
Seatpost | Alloy, 27.2mm |
Saddle | Giant Jr. Sports |
Pedals | Platform |
Shifters | Shimano REVOSHIFT, 1x7 |
Front Derailleur | N/A |
Rear Derailleur | Shimano Tourney |
Brakes | Alloy, linear pull |
Brake Levers | Alloy, junior MTB |
Cassette | 14x34 |
Chain | KMC HV500 |
Crankset | Alloy, 32t, 140mm |
Bottom Bracket | Semi-cartridge |
Rims | Giant Kids 24", alloy |
Hubs | Nutted, 28h |
Spokes | Stainless, 14g |
Tires | Giant Junior Sport, 24x2.1", 22 tpi |
Extras | Bell, kickstand |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
One Size | ||
---|---|---|
A | Seat Tube Length (mm) | 305 |
B | Seat Tube Angle (degrees) | 72.0° |
C | Top Tube Length (mm) | 520 |
D | Head Tube Length (mm) | 120 |
E | Head Tube Angle (degrees) | 70.0° |
F | Fork Rake (mm) | 40 |
G | Trail (mm) | 69.9 |
H | Wheelbase (mm) | 983 |
I | Chain Stay Length (mm) | 410 |
J | Bottom Bracket Drop (mm) | 24 |
K | Stack (mm) | 518 |
L | Reach (mm) | 352 |
M | Stand Over Height (mm) | 616 |
O | Stem Length (mm) | 60 |
P | Crank Length (mm) | 152 |
Q | Wheel Size | 24" |
